4 Inch Lift Kit w/ Radius Arm | Ford F150/Bronco (80-96) 4WD

Call for Pricing

Raise the bar and take your 1980-1996 Ford Bronco full size 4WD truck to the next level with a 4-inch suspension lift kit with extended radius arms by BDS. Designed to...

Rear Lift Option: Choose an option

Block Kit
Block Kit and Add-A-Leaf
Leaf Springs
SKU:
Availability : In Stock Pre order (We ship containers from the USA Monthly) Pre-order (6-8 Weeks from USA or Airfreight for 7-10 day delivery)

07 5500 0095 - Need help with product selection or delivery options?

Raise the bar and take your 1980-1996 Ford Bronco full size 4WD truck to the next level with a 4-inch suspension lift kit with extended radius arms by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

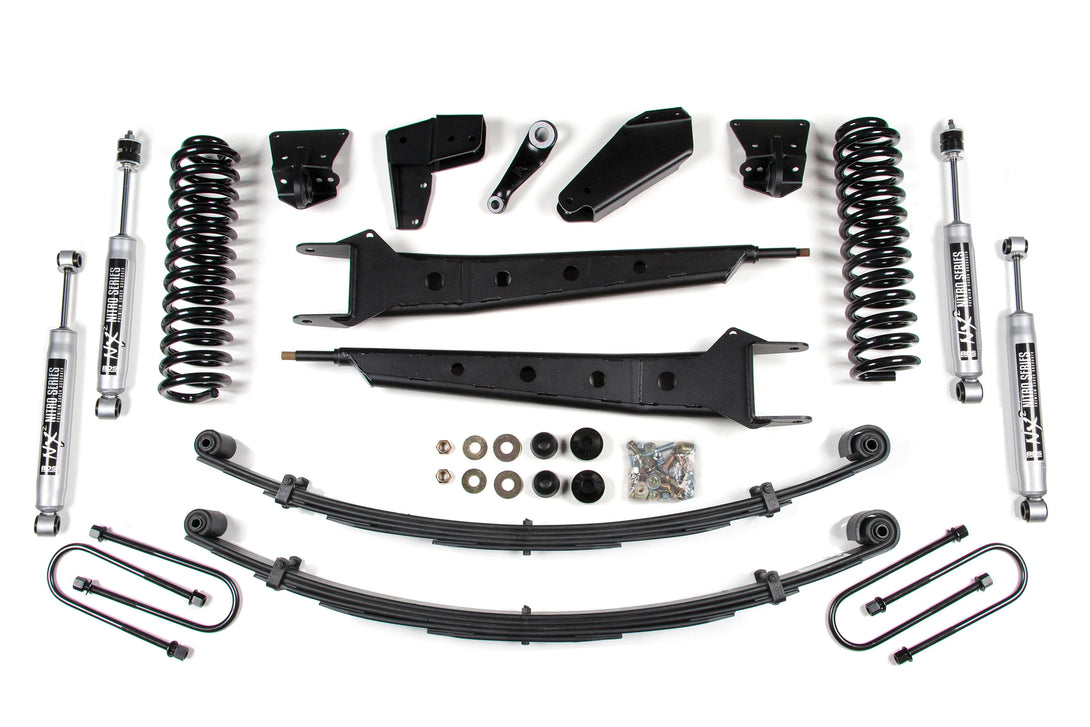

Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended radius arms, radius arm drop mounts, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Pro-Ride Coil Springs

A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Extended Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. The extended radius arm system will reduce caster change through wheel travel creating a more capable and controlled feeling in the steering wheel both on and off road.

  1. If your vehicle is equipped with a front anti-sway bar, you will want a 123401 available in the options.
  2. Does not fit Broncos without power steering.
  3. Front alignment cams available in the accessories may be required for alignment.
  4. Extended brake lines required for all 4-6" lift systems.

Download Guide 1 Download Guide 1

Download Guide 2 Download Guide 2

Download Guide 3

  • Front Lift Method : Coil Spring
  • Front Lift Height : 4"
  • Rear Lift Method : Block
  • Rear Lift Height : 4"
  • Shocks Included : Yes
  • Lift Height : 4-5.5"
