6 Inch Lift Kit | Chevy/GMC 1/2 Ton Blazer/Suburban (88-91) 4WD

Call for Pricing

Designed to improve stance, performance, and capability. BDS Suspension has designed this 4-inch lift kit for your 1988-1991 Chevy K5 Blazer and GMC K5 Jimmy. This kit includes everything necessary to...

Rear Lift Option: Choose an option

4 Inch Block Kit with Add-A-Leaf
Leaf Springs

Shock Option: Choose an option

FOX 2.0 Performance Series
NX2 Nitro Series
Vendor: BDS Suspension
SKU:
Availability : In Stock Pre order (We ship containers from the USA Monthly) Pre-order (6-8 Weeks from USA or Airfreight for 7-10 day delivery)

07 5500 0095 - Need help with product selection or delivery options?

Designed to improve stance, performance, and capability. BDS Suspension has designed this 4-inch lift kit for your 1988-1991 Chevy K5 Blazer and GMC K5 Jimmy. This kit includes everything necessary to set your truck up right with clearance for up to 36" tires.

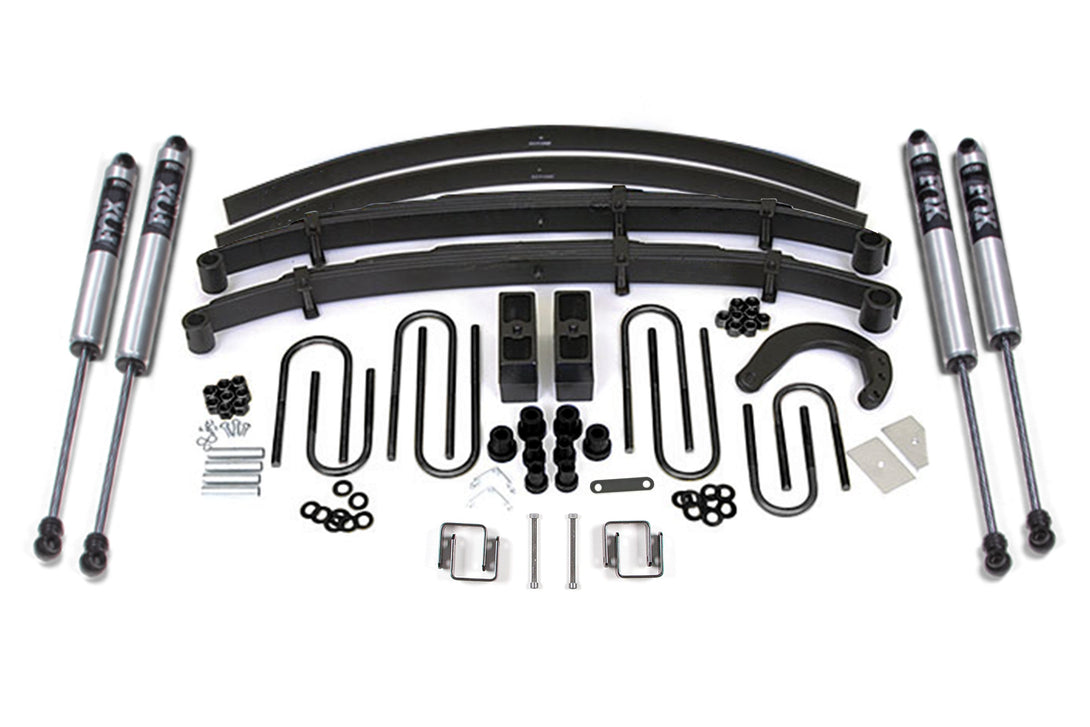

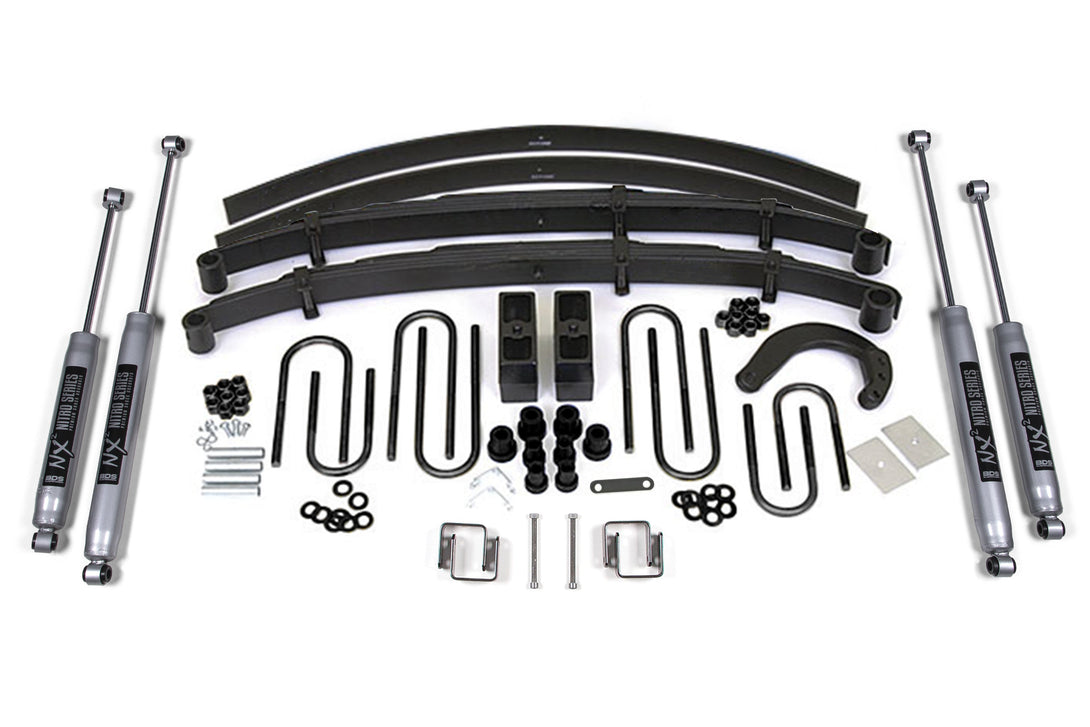

Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

  1. The 1/2 ton commonly came with a factory 52" eye to eye rear leaf spring. However, some were produced with a 56" rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
  2. If equipped with a factory front sway bar, order the front sway bar shackle link kit listed in the accessories section.
  3. Some vehicle came with factory front dual shocks. If you wish to replace the factory duals, you must order the additional two auxiliary shocks in the options.
  4. #001408 come with OE style rubber bushings installed.
  5. Exhaust modification may be required to clear front driveshaft.

Download Guide 1 https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/leafspring.pdf

Download Guide 2 Download Guide 2

Download Guide 3 https://serenity-foxfactory.asset.akeneo.cloud/fox_asset_family/media/121000.pdf

  • Front Lift Method : Leaf Spring
  • Front Lift Height : 6
  • Rear Lift Method : Leaf Spring
  • Rear Lift Height : 6"
  • Shocks Included : No
  • Lift Height : 6-7.5"
