6 Inch Lift Kit w/ Radius Arm | Ram 3500 w/ Rear Air Ride (13-18) 4WD | Diesel

Call for Pricing

Take your 2013-2018 RAM 3500 diesel powered truck to the next level with this 6-inch radius arm lift kit from BDS Suspension. Engineered for trucks factory equipped with rear air ride....

Shock Option: Choose an option

FOX 2.0 Performance Series
NX2 Nitro Series
Vendor: BDS Suspension
SKU:
Availability : In Stock Pre order (We ship containers from the USA Monthly) Pre-order (6-8 Weeks from USA or Airfreight for 7-10 day delivery)

07 5500 0095 - Need help with product selection or delivery options?

Take your 2013-2018 RAM 3500 diesel powered truck to the next level with this 6-inch radius arm lift kit from BDS Suspension. Engineered for trucks factory equipped with rear air ride. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

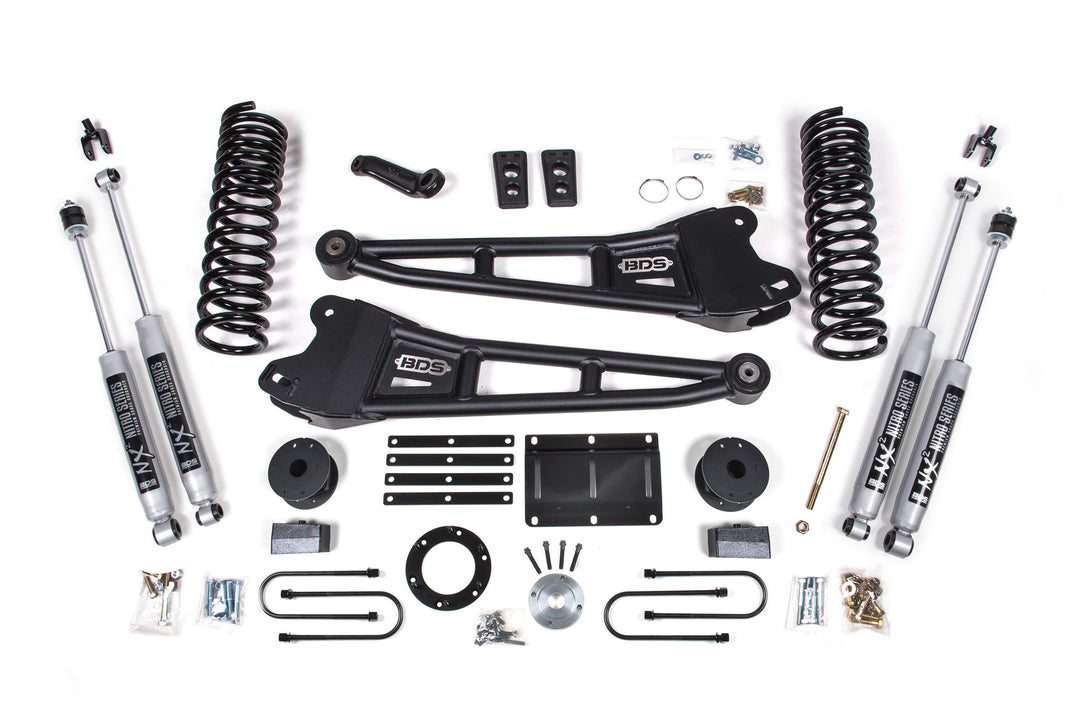

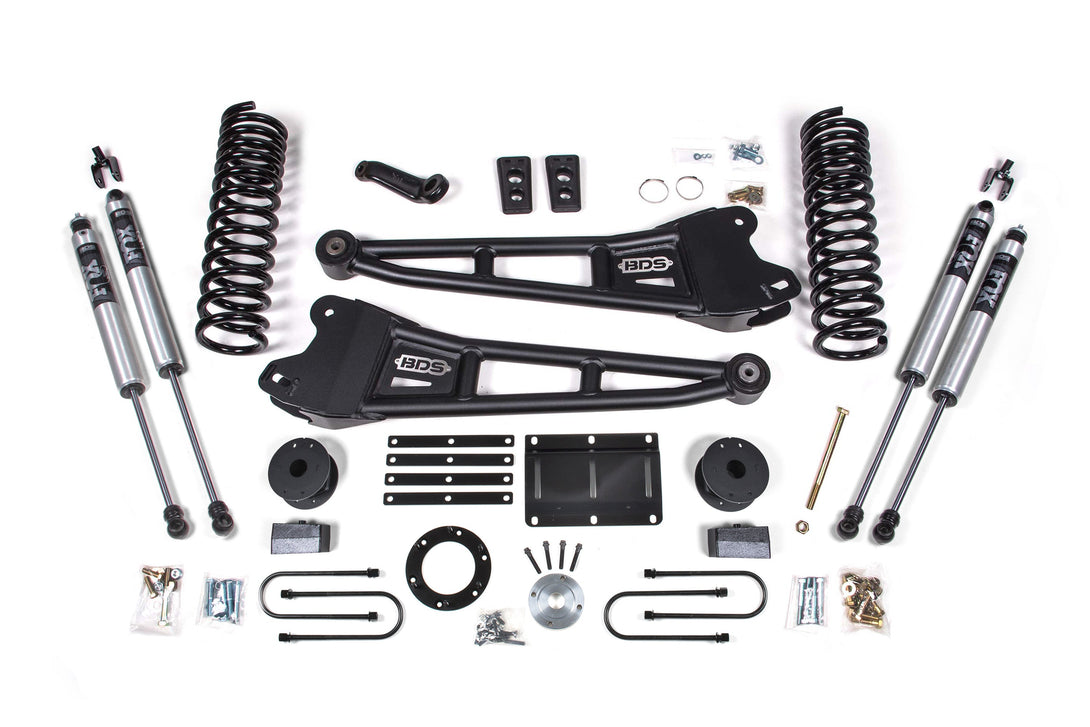

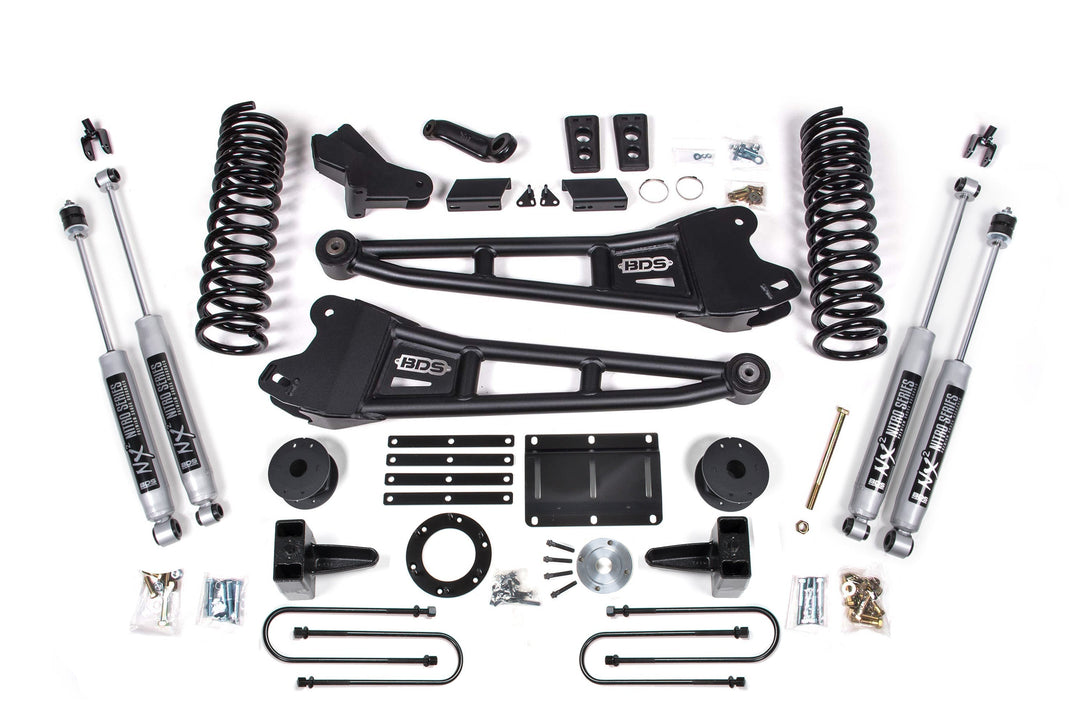

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  1.  Kits come standard with 6-Bolt indexing ring kit. If equipped with heavy-duty 8-bolt t-case order 122813 in place of 122623
  2. For rear leaf spring equipped models only.
  3. The carrier bearing drop (122405) is necessary for models equipped with two piece rear drive shaft.
  4. Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
  5. DRW models fit inner wheel clearance to the upper u-bolt plate on 6" kits
  6. Fits OE equipped air ride systems only

Download Guide 1 Download Guide 1

Download Guide Download Guide 2

Download Guide 3 Download Guide 3

  • Front Lift Method : Coil Spring
  • Front Lift Height : 6
  • Rear Lift Method : Block
  • Rear Lift Height : 5"
  • Shocks Included : Yes
  • Lift Height : 6-7.5"
